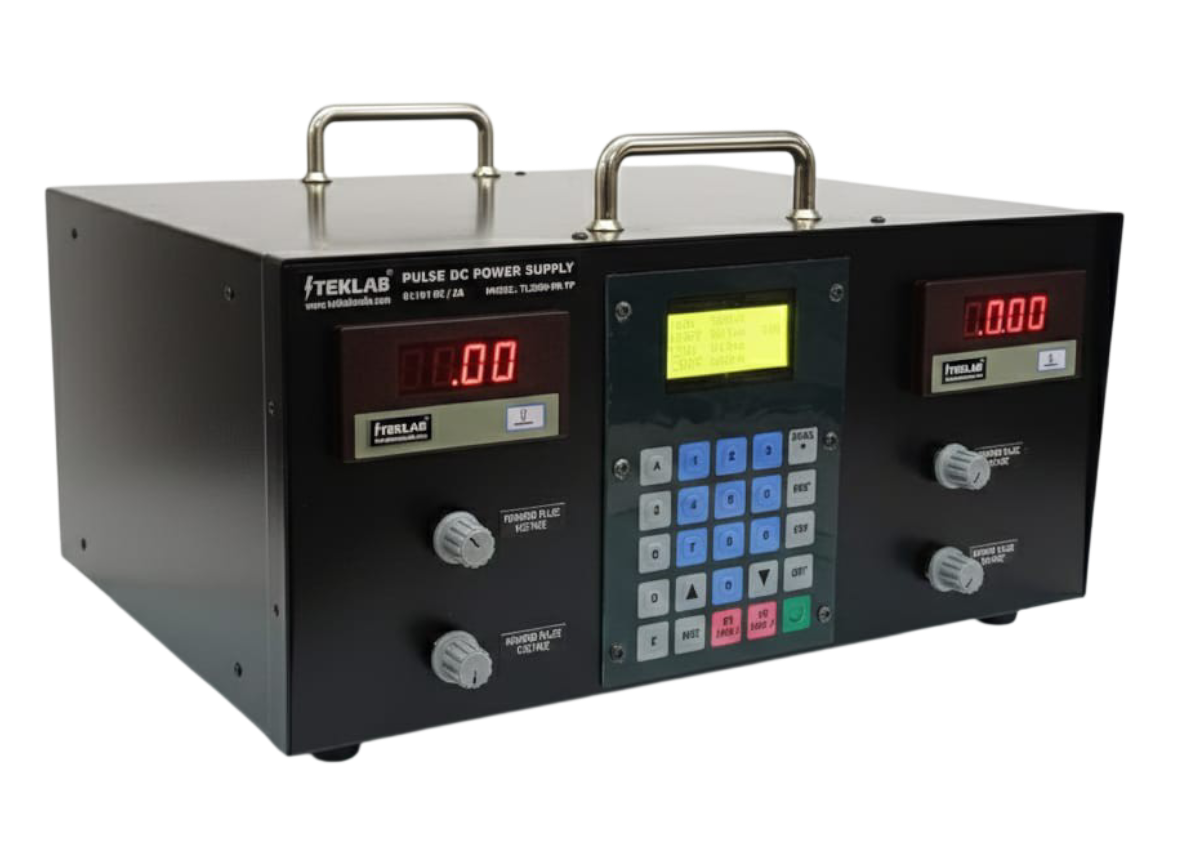

PULSE DC POWER SUPPLY
TEKLAB Pulse power supply is specialised power device that deliver controlled electrical energy in short, high-intensity bursts rather than continuous output. They provide high regulation and stability with either Digital 3-digit LED display for voltage & current is provided to read the values, the unit is equipped with coarse and fine controls for adjusting the voltage.
Moreover, TEKLAB Pulse power supply gentle and stylish look will give your lab the perfect look you deserve.
|
Plating Mode |
Pulse Forward and Pulse Reverse |
|
Working Area |
Mode 1:1cm2 -3cm2(low current range 0.5mA-50mA)-ON COMPLETION WILL TEST |
|
Current Density Range |
1mA/cm2-6mA/cm2 |
|
Time range (Ton and Toff)/duty cycle |
1ms-1000ms/5%-90% |
|
Pulse time range |
1hz-1khz |
|
Monitoring and visual parameters |
Real time voltage and current if possible, pulse display. Set parameters:I1,I2,T1ON,T2ON,TI0FF,T2OFF, RUN TIME. NOT APPLIED |
|
Ripple |
<1% |
|
Rise and fall time |
50us |
|
Protections |
Std protection features. |
|
Compatibility |
Clean room compatible, Table top, to beaker set up salable to larger bath. |
|
Weight |
Portable /handy -<2kg |
|
Stability |
Stable current range with robustness WRT load. |
|
Plating requirement |
>5um with 8-20nm grain size and low stress- ON COMPLETION WILL TEST |
