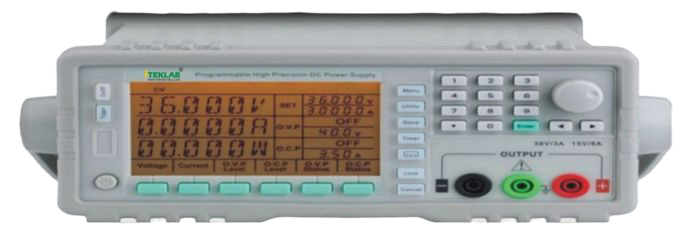

PROGRAMMABLE DC POWER SUPPLY – 216-900W
- 4 digits LCD display for voltage and current
- Constant voltage and constant current operations, auto CV/CC switch
- Front panel operation: preset voltage and current, output ON/OFF
- Multiple protections: OVP, OCP, OTP and OLP
- Transient response time 5ms
- Communication: RS-232 or RS-485 interface
TEKLAB introduced Programmable DC Power Supply with high efficiency, high accuracy and high stability. High gain amplifier circuit design makes this series with fast response improvement on circuits. Active air duct design and optimized cooling channels effectively reduce temperature rise. Over Voltage Protection, Over Current Protection as well as Over Temperature Protection keeps this series and their load safe from unexpected conditions.
|
Line regulation |
Voltage |
≤0.1%FS rms |
|
Current |
≤0.1%FS rms |
|
|
Load regulation |
Voltage |
≤0.1%FS rms |
|
Current |
≤0.1%FS rms |
|
|
Ripple & Noise (20Hz~20MHz) |
Voltage |
≤0.3%FS+50mVrms |
|
Current |
≤0.3%FS+10mArms |
|
|
Time drift |
Voltage |
≤0.5%FS rms |
|
Current |
≤1%FS rms |
|
|
Temperature drift |
Voltage |
≤0.1%FS rms/℃ |
|
Current |
≤0.3%FS rms/℃ |
|
|
Setting accuracy |
Voltage |
≤0.1% FS +20mV (≤100V) ≤0.1% FS +100mV (300V) ≤0.1% FS +300mV (≥600V) |
|
Current |
≤0.3% FS +10mA |
|
|
Setting resolution |
Voltage |
0.01V / 0.1V / 1V |
|
Current |
0.001A / 0.01A / 0.1A / 1A |
|
|
Read back accuracy |
Voltage |
≤0.1% FS +20mV (≤100V) ≤0.1% FS +100mV (300V) ≤0.1% FS +300mV (≥600V) |
|
Current |
≤0.3% FS +10mA |
|
|
Read back resolution |
Voltage |
0.01V / 0.1V / 1V |
|
Current |
0.001A / 0.01A / 0.1A / 1A |
|
|
Transient response time |
≤5ms (10% ~ 90% load change) |
|
|
Protection |
OVP, OCP, OTP and short circuit protection |
|
|
OVP setting range |
0.1V to 110% of rated voltage |
|
|
OCP setting range |
0.1A to 110% of rated voltage |
|
|
Cooling method |
Air cool |
|
|
Operating environment |
0℃~40℃, 10%~80%RH |
|
|
Storage environment |
-20℃~70℃, 10%~90%RH |
|
|
Input voltage |
1φ2W, 230V±10% 50Hz/60Hz |
|
|
Input module |
Power socket or terminal block |
|
|
Dimension & Weight |
W×H×D 215×90×352mm Approx. 8 Kg. (Approx.) |
|
|
Accessories |
Operation manual, Power Cable, SWCD, Cables etc… |
|
