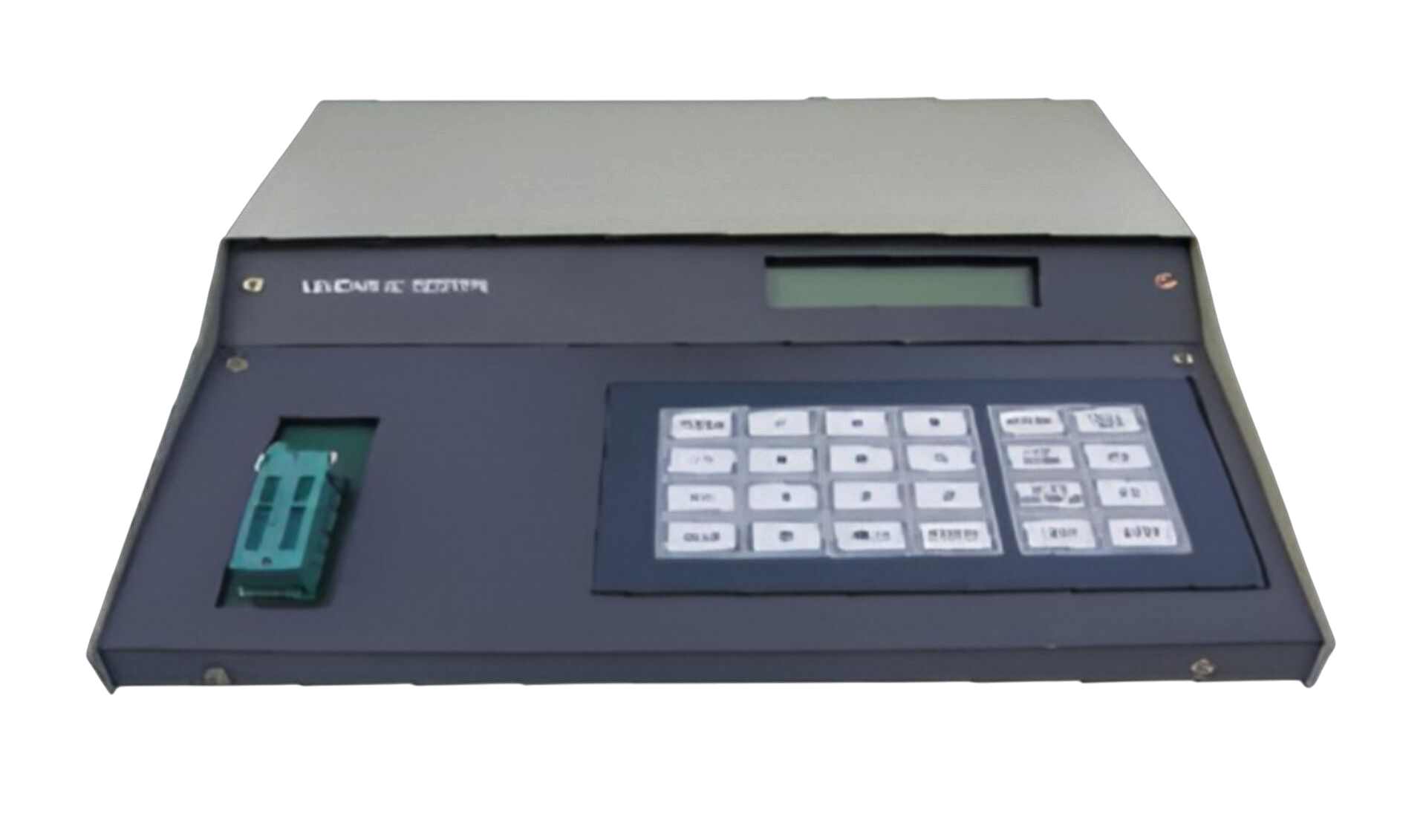

LINEAR IC FUNCTIONAL TESTER
20 PINS
TL LICT-20
TL-LICT-20 is the latest MICROPROCESSOR controlled LINEAR IC FUNCTIONAL TESTER from TEKLAB INDIA SOLUTIONS. It functionally tests a variety of linear ICs including commonly used Operational amplifiers, Comparators, Transistor arrays, OPT couplers, Analog switches, Multiplexers, Voltage followers Timers, A to D converters, D to A converters, cross point switches and other selected Special function analog ICs.
FEATURES
- No personality cards/reference IC/IC data required.
- Automatic testing of IC after entering the IC number. No Wiring is required.
- Continuous mode of tasting Cs until Aborted. Number of times the test was successful Is displayed
- STEP mode to locate faulty pin. Step number and faulty pin number are displayed.
- Buzzer to indicate bad IC
- Separate field for display of mode of operation (One/Con/STP).
- Backspace, clear, select option and number keys for editing IC number
- Remember the IC number for repeated testing of same IC.
- SELF TEST facility during POWER-ON and through keyboard.
- HELP key for short description of the various key functions.
- Potential free 20 pin ZIF (Zero Insertion Force) socket for easy Insertion and removal of IC under test.
- Computer interface through RS232C for enhancement of IC test library.
