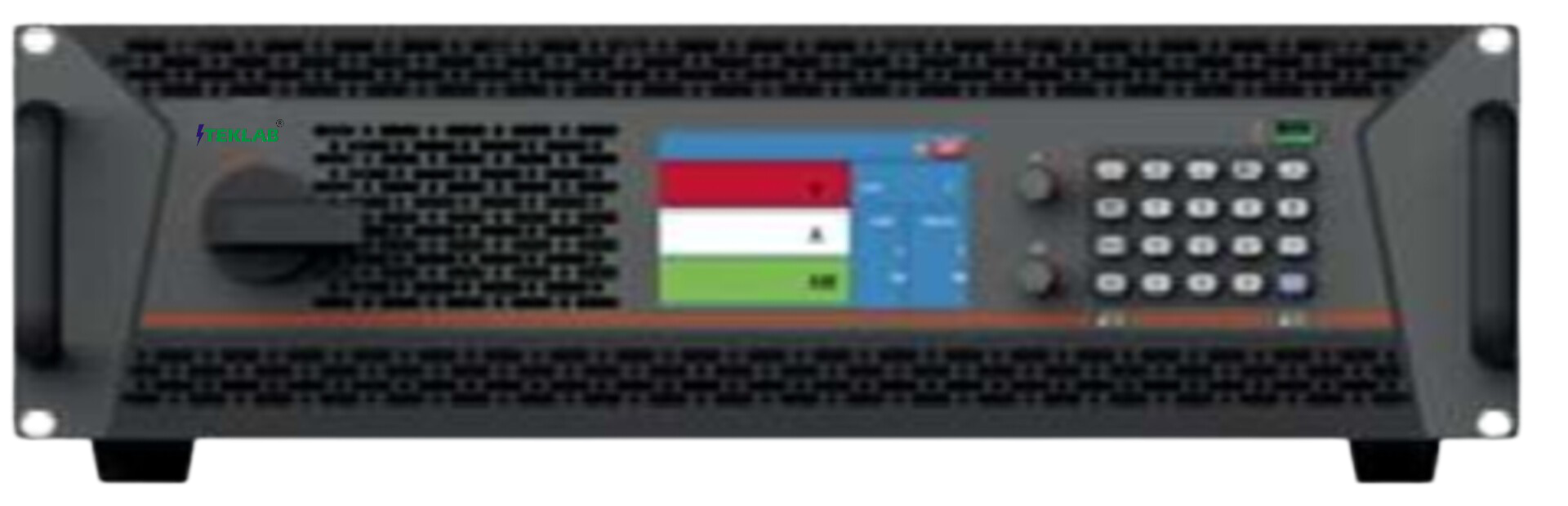

BI-DIRECTIONAL PROGRAMMABLE DC  POWER SUPPLY

TEKLAB TLPVS Series Wide Range Programmable DC Power Supply has a capability of Power Supply and Regenerative Electronic Load. It can feedback the Power to the Grid cleanly. It is a High-Performance Power supply with 30KW Power in 3U Height and Compact Form-factor.

TEKLAB TLPVS Series Wide Range Programmable DC Power Supply has a Wide Range of ratings includes 6 Voltages starting from 100V to 1500V models and support Parallel function to increase the Power in future. It is suitable for the R & D test, Quality test and Production test of Electrical Vehicles, Inverter, Motors, Batteries, PV Inverters, DC-DC Converters, Automotive Electronics, Power Electronics, etc.

FEATURES

  • Programmable Bi-Directional DC Power Supply, Integrated Power Supply and Regenerative Load
  • Compact Formfactor, 3U size with 30KW
  • Voltage Output – 100V, 330V, 500V, 750V, 1000V and 1500V models. Wide-Range Constant Power
  • output capability
  • Arbitrary waveform generator supports multi-curve cycle
  • Parallel Function to increase the Power using Master-Slave configuration. Supports IS016750-2, LV123,
  • LV124 and other international test standards
  • 3” Color Display with User friendly operation using buttons and knobs Energy flows in both directions
  • within the full power range Automatically detected voltage compensation terminals
  • Over voltage, over current, over temperature and output short circuit protections Output Voltage drop compensation
  • Disable the front panel using Key lock function to prevent the mis-operation
  • PC Software – with I-V Curve Simulation, Battery Simulation, Arb waves, simulations functions. Communication interface – RS232, LAN, CAN as a standard interface

Input parameter

3-phase 3-wire+PE, 380/400/480 ± 15%, 45-65Hz

Rise Time – Load to reach from

10- 90% V  out

≤ 32 ms

Transient recovery time

< 1.8 ms

Ripple

< 0.04% Vmax

Noise

≤ 65dB (A)

Overvoltage Protection

0~110V% Max adjustable

Protection and alarm

Over Voltage Protection, Over Current Protection, Over Power Protection, Over Temp. Protection, Short Circuit Protection, Power Module Fault Alarm etc

Cooling method

Temperature Controlled Forced Air cooling

Parallel Output

Supports up to 10 master-slave configurations

Efficiency

~90%

Operating Temperature

0-40⁰C

Storage Temperature

-20⁰ ~ 70⁰C

Humidity

<80%, no condensation

Dimensions (W×H×D)

482×134×852 (Maximum Size)
