HIGH POWER DC REGULATED POWER SUPPLY – SINGLE OUTPUT
1KW-5KW
- Current Voltage / Constant Current Operation
- Two Digital Meters-3 Digit DPMs
- Phase Controlled Pre Regulation Plus Linear Post- Regulation 0.1%
OPTIONS AT EXTRA COST
- 19” Rack Mounting
- Analog programming & monitoring for Voltage & Current
- Output ON/OFF Switch

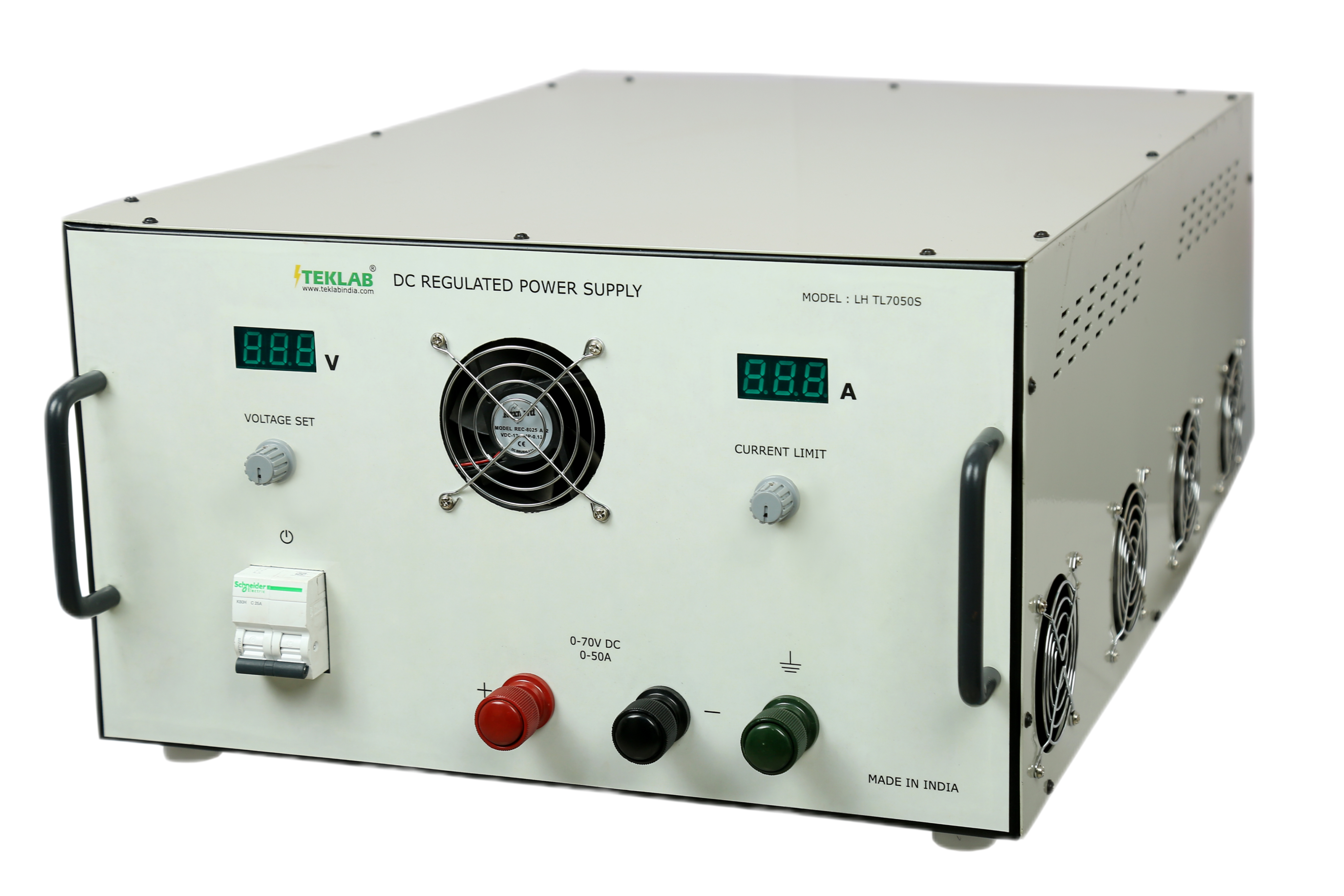

TEKLAB DC Regulated Power Supply is designed as a Constant Current (CC) and Constant Voltage (CV) source for use in laboratories, industries and field testing. With compact size, it provides DC output voltages for Analog and Digital testing.
They provide high regulation and stability with either Digital 3-digit LED display for voltage & current is provided to read the values, the unit is equipped with Multi Turn controls for adjusting the voltage and Current.
| Font Panel Volt & Current Control | 10 turn potentiometers for current | |
| Metering | 3-digit DPMs for voltage and current measurement. | |
| Meter Accuracy | ±1 DIGIT | |
| Constant Voltage Mode | REGULATION | Line: ±0.1% for ±10% change in line voltage.
Load: ±0.1% for load change from zero to full load. |
| Constant Current Mode | REGULATION | Line: ±0.1% for±10%change in line voltage.
Load: ±0.1% for change in output voltage from 0 volts to maximum output voltage. |
| Ripple & Noise | 0.1% – 1% | |
| Output Polarity | Floating w.r.t. ground. | |
| Protection | SCP/OVP/OLP/RPP | |
| Stability | Total drift within 8 hours, after 30 minutes warm-up under constant line, load and temperature. | |
| Operating Temperature | 0 to 50°C. | |
| Storage Temperature | -20°C to 70°C | |
| Temp. Coefficient | ±0.05% ±5mV per °C after initial warm-up of 30 minutes, in voltage mode. | |
| Cooling | Internal Forced Cooling Fan | |
| Line Voltage | 230V AC ± 10%, Single Phase 50Hz. | |
| Input ON/OFF | MCB | |
| Custom Capability | Special Voltage and Current ratings available on request | |
| Note | Regulations to be measured at sense terminals | |
