ANALOG & DIGITAL IC TESTER
40 Pins

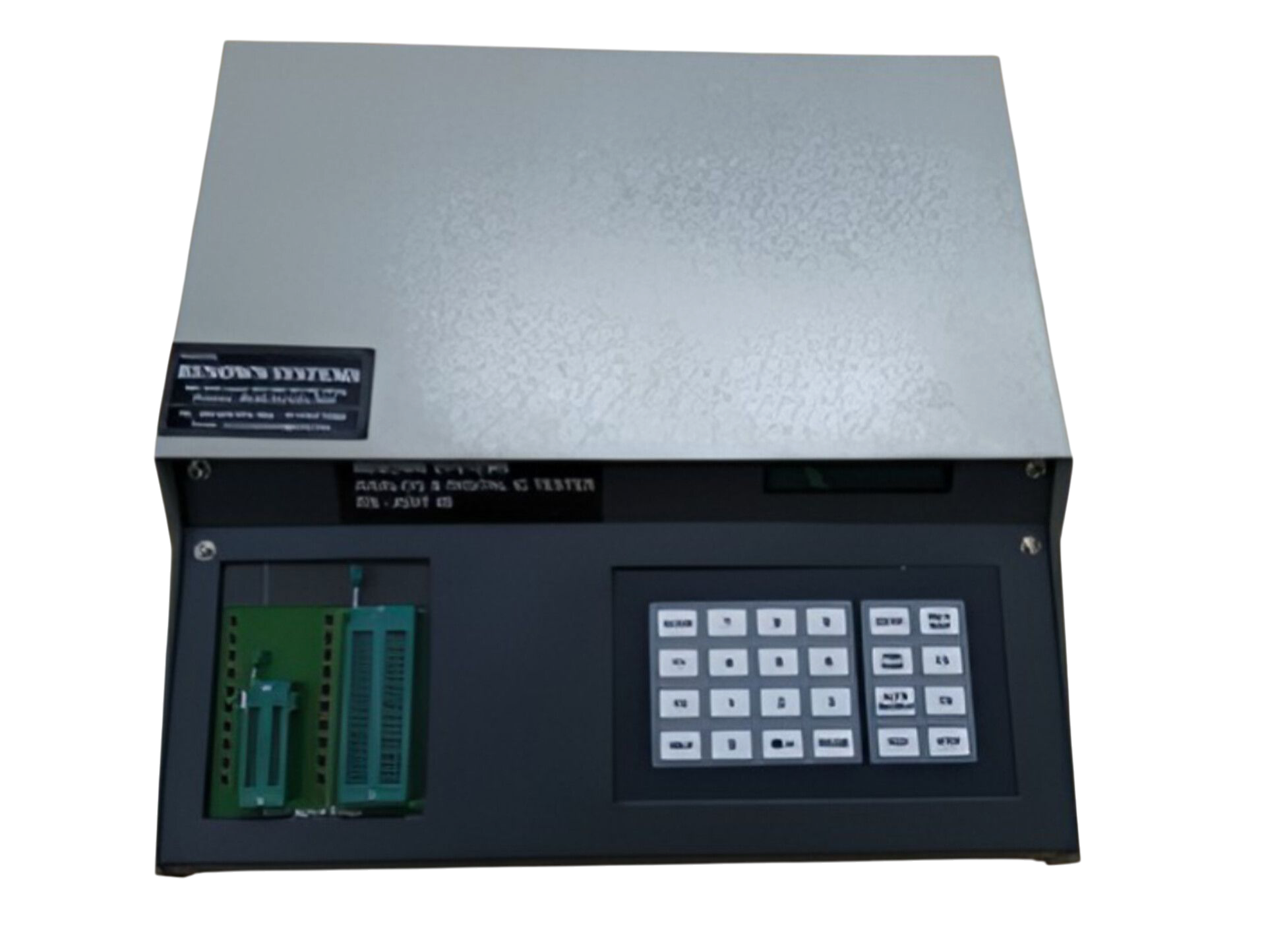

TL-ADIT 40
TL-ADIT 40 is the latest MICROPROCESSOR based IC Tester from TEKLAB INDIA SOLUTIONS.
It uses a microprocessor system with stored testing procedures to apply specific inputs to an IC and compare the outputs with expected results. It functionally tests a wide variety of digital ICs up to 40 pins and Linear /Analog ICs up to 20 pins.
Moreover, TEKLAB Analog and Digital IC Tester’s gentle and stylish look will give your lab the perfect look you deserve.
SPECIFICATIONS
| DISPLAY | 16 x 2 Backlit Alphanumeric LCD |
| KEYBOARD | 24 keys keyboard |
| PACKAGE DIGITAL IC RANGE | Digital lCs 14, 16, 20, 24,28 & 40 Pin DIP& ‘Analog/Linear ICs6, 8, 14, 16 &20 Pin DIP74 Series of TTL ICs, 40 and 45 Series of CMOS ICs, Microprocessors (8085, 8086, 8088, Z80, 6502) Peripheral ICs (8255, 8253, 8251, 8259, 8155, 8279, = PIO) EPROMs (blank check only) RAM ICs 6116, 6264, 62256 etc., |
| ANALOG IC RANGE | Operational Amplifiers, Comparators, transistor arrays, opt couplers, Analog Switches, Multiplexers, Voltage followers, timers, cross point switches, ADC, DAC etc. |
| METHOD | Output test with simulated inputs and at nominal loads / Truth table comparison |
| SOCKETS | 20pin ZIF for Linear and 40pin ZIF for Digital ICs |
| VOLTAGE | 230V 50Hz AC +10% |
| ENCLOSURE | Sheet Metal box with powder coating and Engraving |
