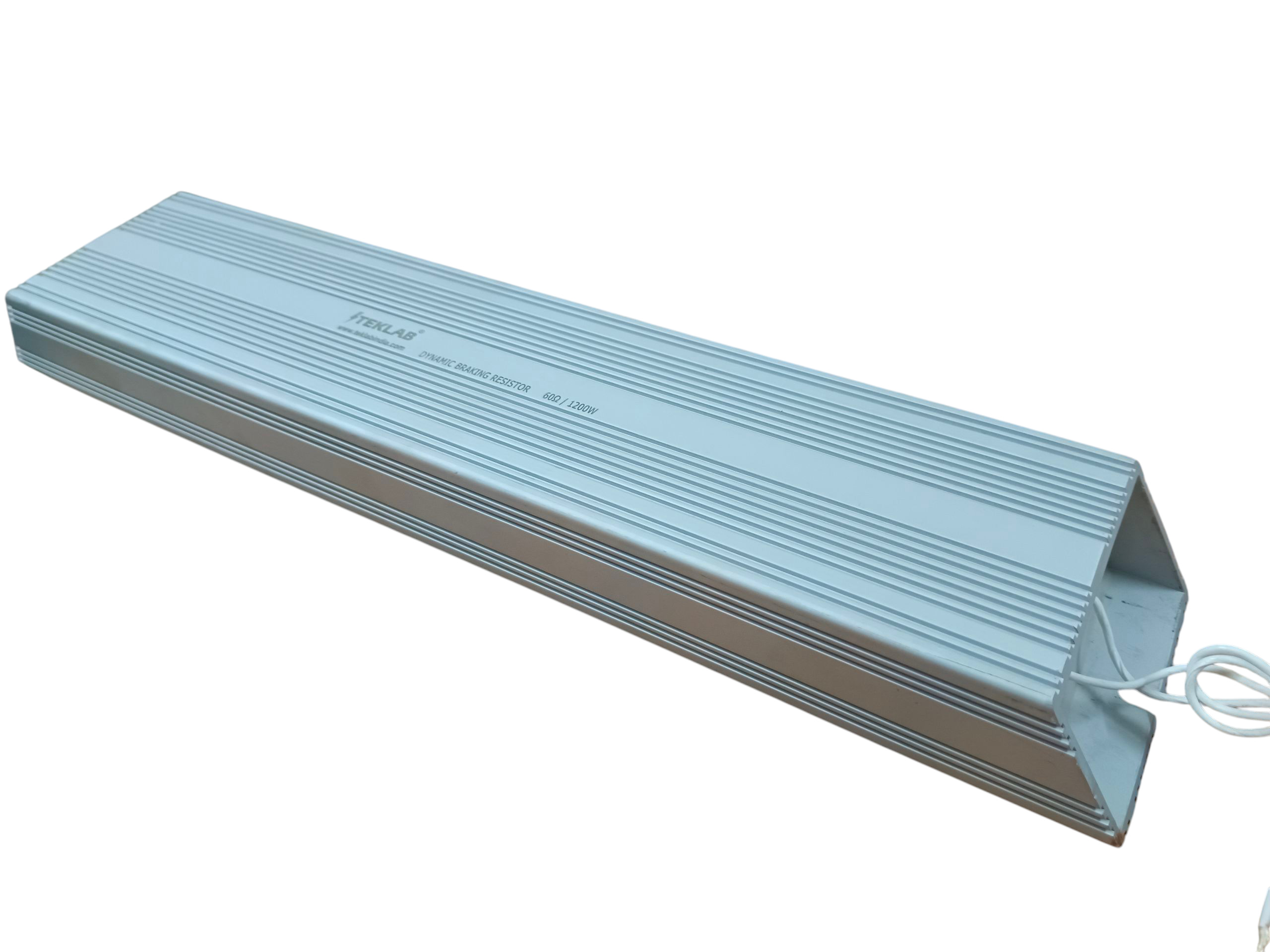

ALUMINIUM HOUSING RESISTOR/DBR
TEKLAB Make Aluminium Housing resistors/DBRs of common application, insulated, for overhead mounting. Resistors are designed for using in AC and DC circuits, providing current limitation and voltage distribution. Resistor resistance is adjusted by changing the position of the moving clamping collar (movable contact) along the case (tube).
|
Resistance range |
1 Ω – 100k Ω |
|
Resistance tolerance |
± 5% |
|
Rated voltage |
Vmax = √Pnom ∙ Rnom |
|
Maximum working voltage |
1400V |
|
Operating temperature |
-60°C … +155°C |
|
Raised ambient operating temperature |
70ºC |
|
Relative humidity at 35°C without condensation |
<98% |
|
Temperature coefficient of resistance |
±500 ppm/°C |
|
Insultation resistance |
1000M Ohm |
