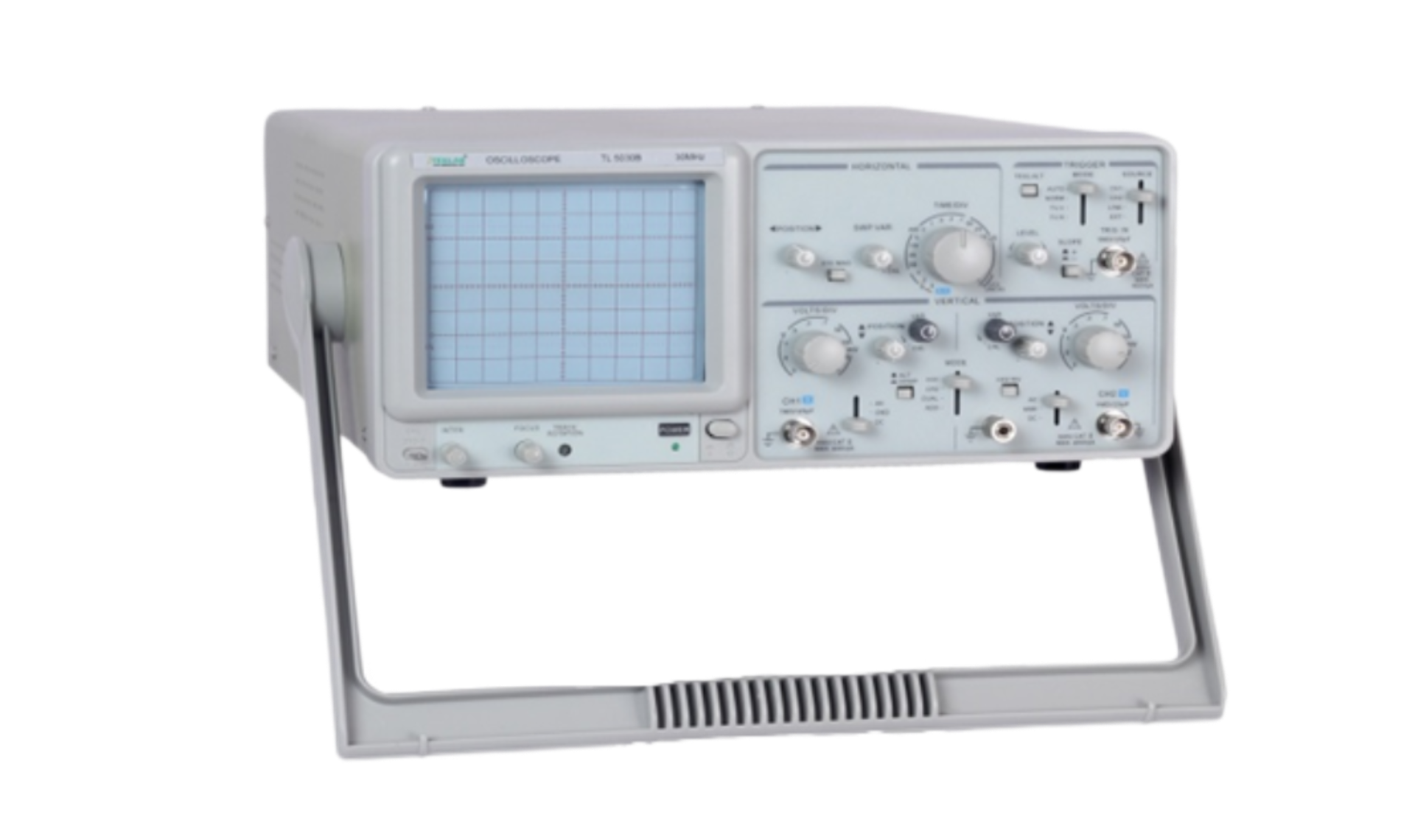

TEKLAB Analog Oscilloscope use a vertical amplifier, horizontal amplifier, time base, power supply, and a cathode ray tube to measure an electronic instrument’s voltage against time. TEKLAB Analog oscilloscopes test equipment by directly applying measured signal voltage to its vertical axis. An electron beam passes on the display screen of the oscilloscope representing the measured signal voltage.
|
Band width |
DC (AC 10Hz) ~ 30MHz (-3dB) |
|
Sensitivity |
5 mV~ 5V / Div. (±3%) |
|
Rise Time |
≤ 17.5 n S |
|
Max. Input Voltage |
400V (DC +AC p-p) |
|
Input Coupling |
AC, DC, GND |
|
Input Impedance |
≈ 1MΩ / 25 pF |
|
Vertical Mode |
CH1, CH2, DUAL (ALT/CHOP) ADD, CH2 INV |
