DC POWER SUPPLY – DIN SERIES
30W – 300W
FEATURES
- Universal AC input / Full range
- Built-in active PFC function
- Protections: Short circuit / Overload / Over voltage/ Over temperature
- Cooling by free air convection
- Can be installed on DIN rail TS-35/7.5 or 15
- UL 508 (industrial control equipment) approved
- BS EN/EN61000-6-2(BS EN/EN50082-2) industrial immunity level
- 100% full load burn-in test
- 2 years warranty

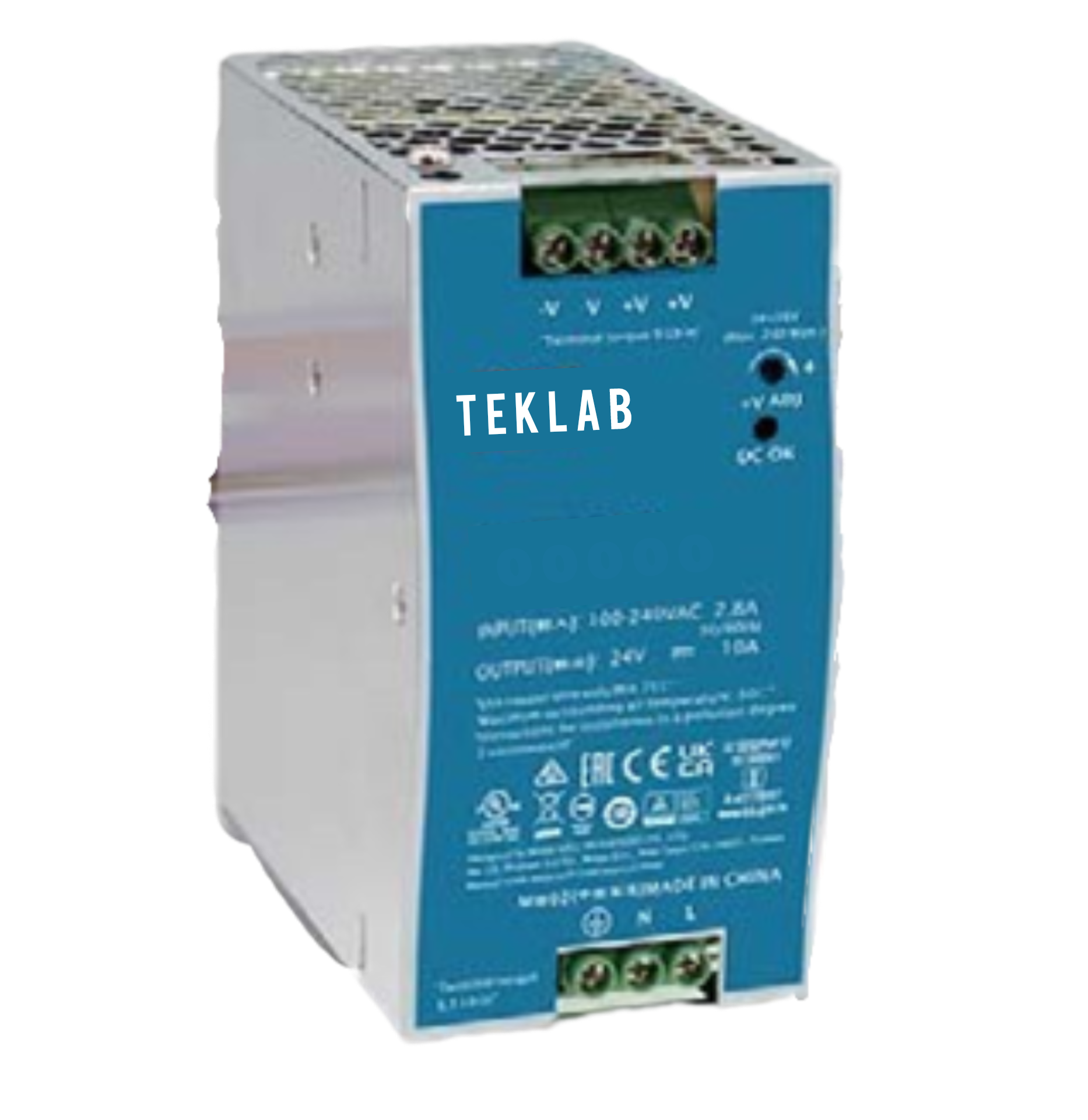

TEKLAB introduced DIN series are one economical slim Din rail power supply units, adapt to be installed on TS-35/7.5 or TS-35/15 mounting rails. The body is designed 63mm in width, which allows space saving inside the cabinets. The entire series adopts the full range AC input from 90VAC to 264VAC.
DIN series is designed with metal housing that enhances the unit’s power dissipation. With working efficiency up to 90%, the entire series can operate at the ambient temperature between -20℃ and 70℃ under air convection. lt is equipped with constant current mode for over-load protection, fitting various inductive or capacitive applications
