DIGITAL IC TESTER
20 PINS
TL DIT-20

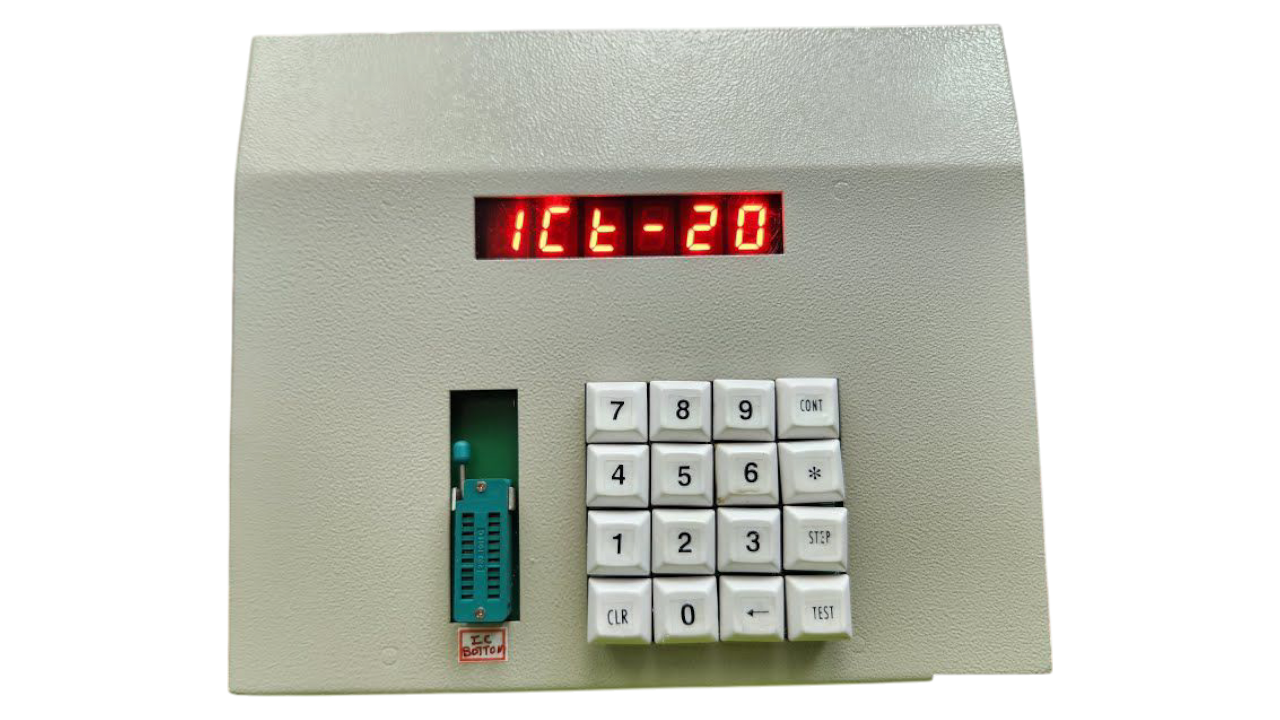

TEKLAB INDIA SOLUTIONS introduced Digital IC Tester TL DIT-20 is a tabletop elegant IC Tester of testing Digital IC’s up to 20 pins. It has got 16 keys keyboard, 6-digit 7 segment LED display and 20 pin ZIF (Zero Insertion Force) socket to easily insert the IC’s and test the same.
|
TEST RANGE |
Logical gates, counters, flip-flops, buffers, latches, shift registers, encoders, decoders, constable multi vibrators, multiplexers, cross point switches etc. |
|
TEST METHOD |
Output test with simulated inputs and at nominal loads using truth table comparisons |
|
TEST MODES |
ONE mode to test the IC once CONT mode to continuously test the IC in loop STEP mode to test the IC in single step |
|
rDURATION GF TESTING |
It depends on the complexity of the IC. |
|
SUPPLY VOLTAGE |
230V +10% 50Hz AC. |
